Micro QR & rMQR: The Complete Guide to Small-Space QR Code Solutions
QR Codeโ views
The standard QR Code's smallest version (Version 1) is 21ร21 modules โ still too large for electronic components, PCBs, or tiny labels. The QR family therefore includes two "mini" variants: Micro QR and rMQR (Rectangular Micro QR). This article provides a deep technical comparison with standard QR and explores real-world applications.
Why Micro QR Exists
In standard QR Code Version 1 (21ร21 modules), the three Finder Patterns consume roughly 46% of the total area, leaving limited space for actual data.
Micro QR's core innovation: retain only one Finder Pattern (top-left), reducing positioning overhead from ~46% to ~25%. The tradeoff: smaller capacity and limited scan angles.

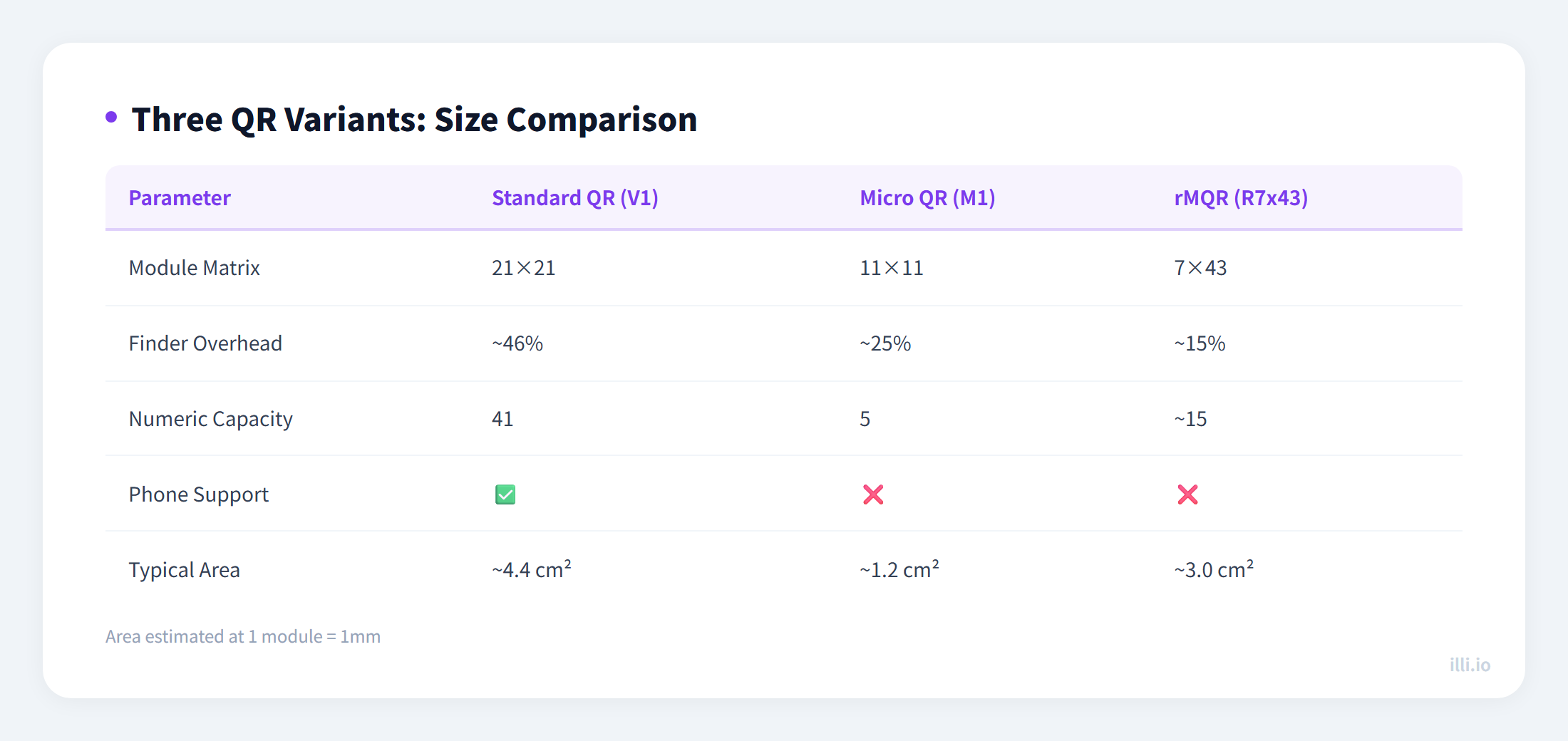

Technical Parameters: Three QR Variants
Parameter
Standard QR
Micro QR
rMQR
Standard
ISO/IEC 18004
ISO/IEC 18004 Annex
ISO/IEC 23941
Finder Patterns
3
1
1 + sub-finder
Minimum Size
21ร21 modules
11ร11 modules
7ร43 modules (R7x43)
Max Numeric
7,089
35
361
Max Alphanumeric
4,296
21
219
ECC Levels
L/M/Q/H
L/M/Q (no H)
M/H
Shape
Square
Square
Rectangle
Scan Angle
360ยฐ
Limited
360ยฐ
rMQR: The Rectangular Revolution
Released in 2022, rMQR (ISO/IEC 23941) addresses a persistent pain point: many label spaces are narrow strips (pharmaceutical packaging edges, PCB margins) where square codes simply do not fit.
Key rMQR features:
Supports sizes from R7ร43 to R17ร139 and beyond
As narrow as 7 modules high, embeddable in ultra-narrow spaces
Higher capacity than same-area Micro QR
360ยฐ scanning via finder marks at top-left and bottom-right corners
Application Scenarios
Scenario
Recommended
Reason
PCB marking
Micro QR
11ร11 modules suffice, 75% smaller than standard QR
Pharma packaging side
rMQR
Narrow strip perfect fit, meets GS1 requirements
Electronic component tracking
Micro QR
Ultra-small area, laser-etch compatible
Logistics label edge
rMQR
Rectangular layout fits label margins
Consumer scanning
Standard QR
Best phone compatibility, 360ยฐ scanning
Product serial numbers
Micro QR / rMQR
Short data, saves print space

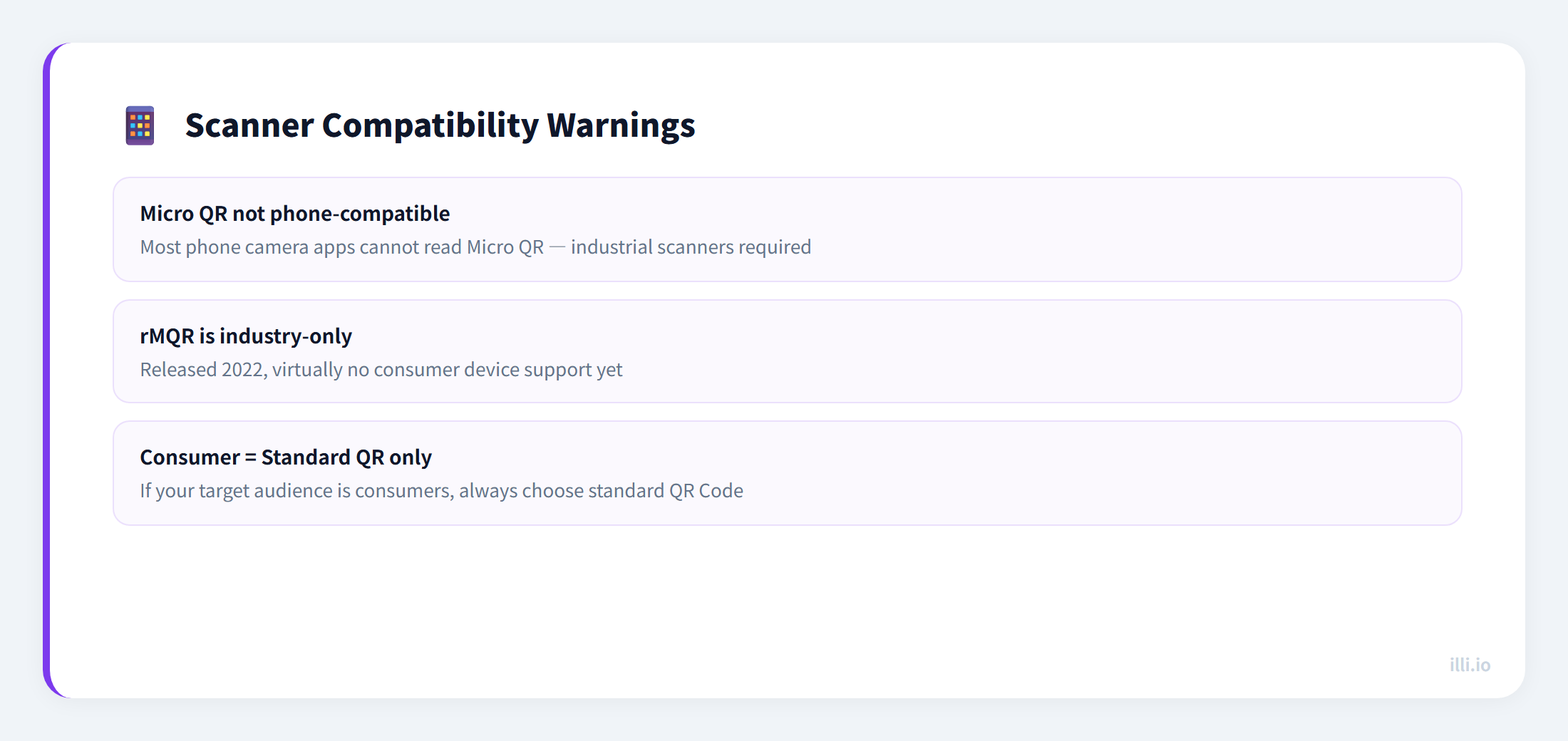

Scanner Compatibility Status
This is the most critical factor when choosing:
Standard QR: All smartphones natively supported โ
Micro QR: Most phone cameras do not support it โ requires dedicated scanning apps or industrial scanners โ ๏ธ
rMQR: 2022 standard, currently industrial scanners only, phones generally cannot read it โ ๏ธ
Therefore, consumer-facing scenarios must use standard QR Code. Micro QR and rMQR are only suitable for industrial/medical/logistics environments with dedicated scanning hardware.
Generation Tools & Practical Advice
For standard QR Code needs, illi.io generates high-quality codes with customizable ECC levels and vector output. For Micro QR or rMQR, you currently need specialized libraries like Zint or libdmtx for programmatic generation.
